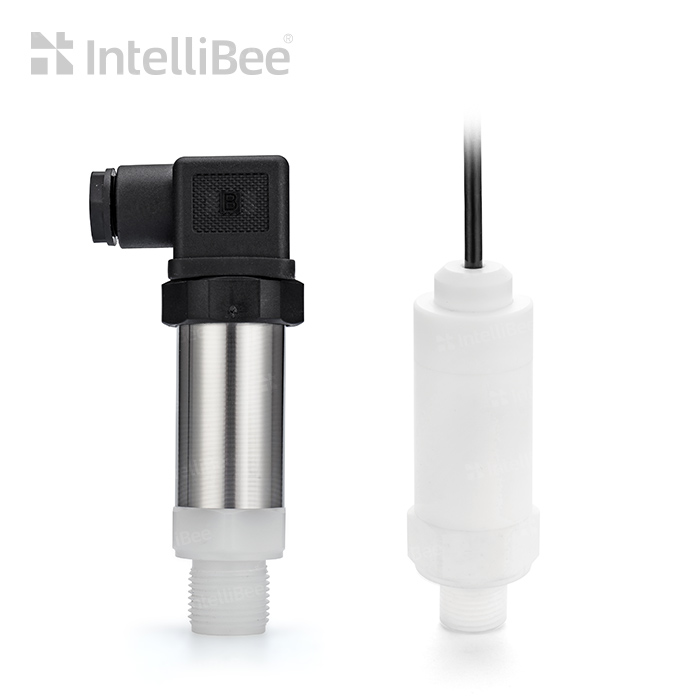

AP30 series anti corrosive liquid level transmitter adopts high-performance ceramic piezoresistive and corrosion-resistant cores.

• 1) All-stainless steel one-piece structure liquid level transmitter
• 2) Submersible anti-corrosion liquid level transmitter
• 3) Split type with display submersible liquid level transmitter
• Level Range: 0 ~ 1m ~ 1000mH2O(optional)
• Shell material:PVC、PTFE、316L, Titanium alloy,PVDF, Teflon, PP(optional)
• Wetted material: 316L, ceramic, Titanium alloy(optional)

• A variety of corrosion-resistant materials are available:
  1. Sensor diaphragm: ceramic, 316 stainless steel, titanium, tantalum , etc
  2. Interface and housing: stainless steel 304, 316, titanium alloy, Hastelloy, PVC, PVDF, PTFE, PP (optional)
• Pressure Range: -100KPa~0~1kpa… 260Mpa (Optional)
• Output: 4~20mA, 1~5V, 0~5V, 0.5~4.5V, 0~10V, RS485, (optional)
• Process connection: M20x1.5, G1/4”, NPT 1/4”,G1/2” (optional)

• A variety of corrosion-resistant materials are available:
  1. Sensor diaphragm: ceramic, 316 stainless steel, titanium, tantalum , etc
  2. Interface and housing: stainless steel 304, 316, titanium alloy, Hastelloy, PVC, PVDF, PTFE, PP (optional)
• Pressure Range: -100KPa~0~1kpa… 260Mpa (Optional)
• Output: 4~20mA, 1~5V, 0~5V, 0.5~4.5V, 0~10V, RS485, (optional)
• Process connection: M20x1.5, G1/4”, NPT 1/4”,G1/2” (optional)
