Diffusion Silicon Pressure Sensor and Transducer
IntelliBee Sensor produces diffusion silicon pressure sensor / transducer has small size with wide pressure range, high stability, low cost OEM, wide operable temperature range.
Designed for o-ring mounting for the applications where compatibility with corrosive media is required. Each sensor was strictly temperature compensated for both zero and span.
IntelliBee Sensor can customize diffusion silicon pressure sensor according to customer requirements.

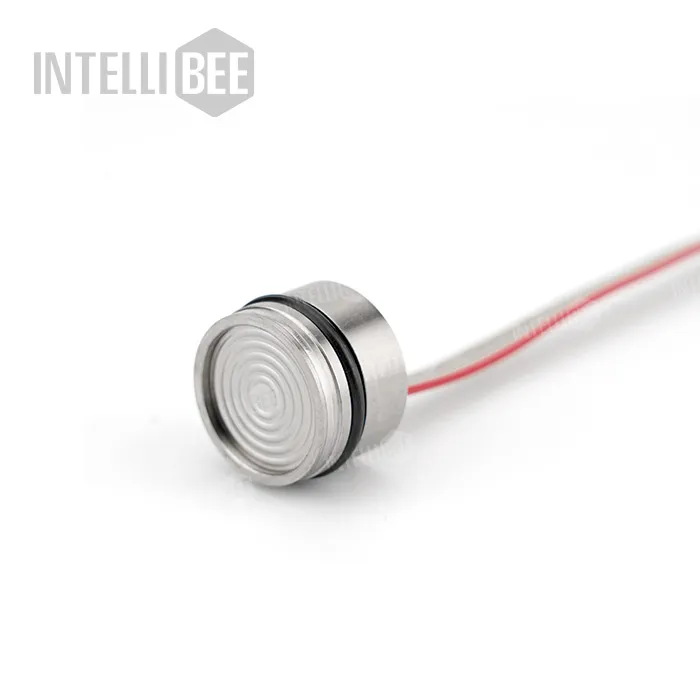

Low Pressure Oil Filled Sensor
AC11
Low Pressure Oil Filled Sensor
Pressure range: 0-7Kpa…10Kpa
Diameter: 19mm O Ring mounting
Features: Low pressure with high stability
Oil Filled Sensor
AC11
Oil Filled Sensor
Pressure range: 0-40Kpa…7Mpa
Diameter: 19mm O Ring mounting
Features:
Low cost OEM
Transmitter Capsule
ACE
Transmitter Capsule (All Inclusive)
Pressure range: 0-10Kpa…7Mpa
Features:
* Sensor size with transmitter functions
* Full-scale temperature compensation
Oil Filled Sensor
ACD11
Oil Filled Sensor (Digital Output)
Pressure range: 0-10Kpa…35Mpa
Features:
* I2C and SPI interface protocols
* ±0.5% Total Error Band
Oil Filled Sensor Small Profile
AC15
Oil Filled Sensor Small Profile
Pressure range: 0-100Kpa…7Mpa
Diameter: 12.6mm weldable sensor
Features:
Small profile and easily to be welded
Flush Diaphragm Pressure Sensor With Fitting (SS 304)
AC12
Flush Diaphragm Pressure Sensor With Fitting (SS 304)
Pressure range: 0-40Kpa…7Mpa
Features: M20X1.5 or G1/2 made by Stainless Steel 304
Flush Diaphragm Pressure Sensor With Fitting
AC13
Flush Diaphragm Pressure Sensor With Fitting (SS 316L)
Pressure range: 0-40Kpa…7Mpa
Features: M20X1.5 or G1/2 made by Stainless Steel 316L
Flat Diaphragm Pressure Sensor With Screw Head
AC23
Flat Diaphragm Pressure Sensor With Screw Head
Pressure range: 0-40Kpa…4Mpa
Features:
High stability and high precision
Pressure / Temperature Sensor
AC31
Pressure / Temperature Sensor (MEMS & PT100)
Pressure range: 0-40Kpa…7Mpa
Diameter: 19mm O Ring mounting
Features:
Wide operable temperature range
Oil Filled Sensor For High Range
AC16
Oil Filled Sensor For High Range
Pressure range: 0-10Mpa…70Mpa
Diameter: 19mm O Ring mounting
Features:
* High stability, high accuracy
* Compatible with corrosive media
Oil Filled Sensor 2″ Flang
AC28
Oil Filled Sensor 2″ Flang
Pressure range: 0-40Kpa…2.5Mpa
Typical output: 0-100mV
Features:
* Wide operable temperature range
* Compatible with corrosive media
Temperature and Pressure Integrated Transmitter
ACM1
Microfused Pressure Sensor
Pressure range: 0-3.5Mpa…100Mpa
Typical output: 0-100mV
Features:
* Welded structure without O-ring
* 5X burst pressure
