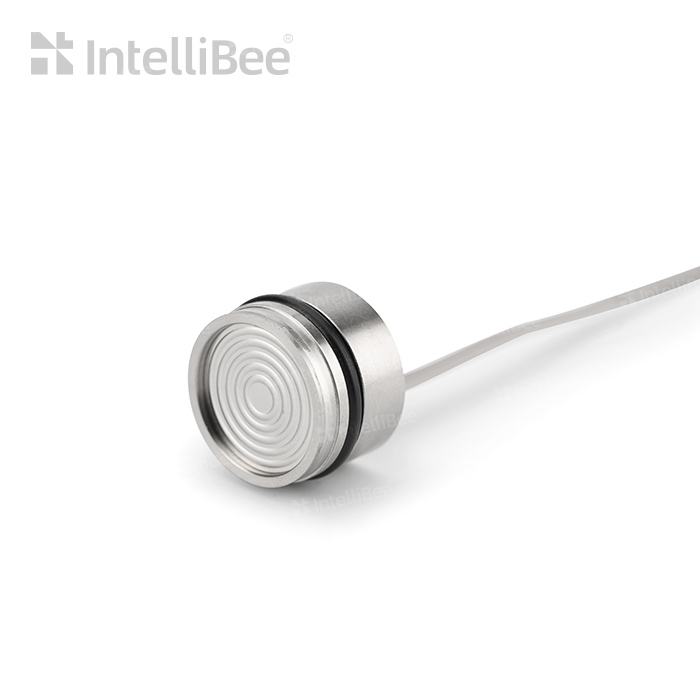

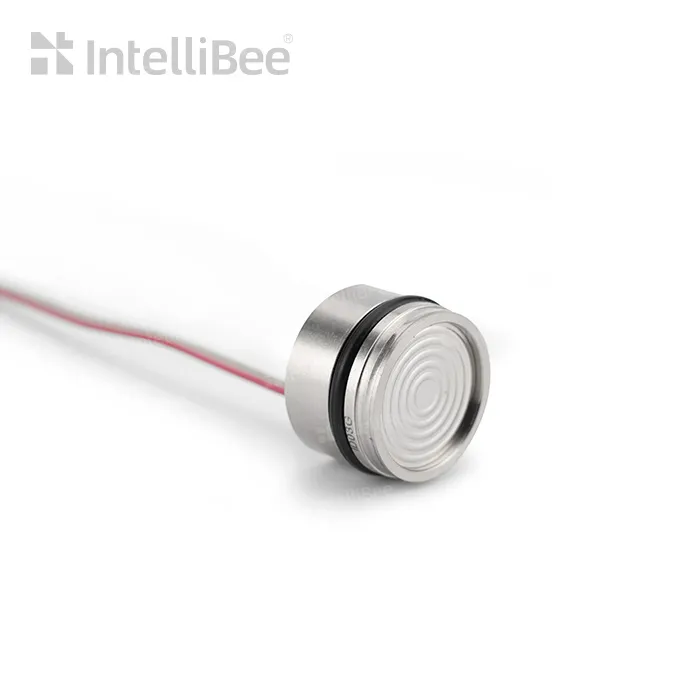

ACE series are designed as a transmitter capsule, There are three function modules embeded in a 316L stainless steel housing.
1) Pressure module–Utilizing silicone oil to transfer pressure from the 316L stainless steel diaphragm to a MEMS pressrue die.
2) ASIC module–Amplification and temprature compensation for pressure siginal
3) EMC module–Protection for the whole electric circuit
The transmitter capsules themselves are ideally suited for embeding in application-specific systems.
Various amplified output with 4~20mA, 0.5~4.5V, 0~5V are avaliable, Also digital output of I2C or SPI could be provided based on request.
* Sensor size with transmitter functions
* Pressure range: 0-10Kpa…7Mpa
* Total error band<0.50%(typical)
* Wild compensation temp.(-10~70℃)
* Side O-ring seal,no assembly stress
* Low cost
* Reverse polarity protection
* EMC functions
Ambient Temperature: 25°C (unless otherwise specified)
| Parameters | Min. | Typical | Max. | ||||
| Accuracy(%FS) combined linearity, hysteresis and repeatability |
≤10Kpa | ±0.2 | ±0.3 | ||||
| ＞10Kpa | ±0.05 | ±0.1 | |||||
| Output | 0.5~4.5V(Ratiometric); 0-5V; 4-20mA | ||||||
| Zero output(%FS) | -0.5 | ±0.25 | 0.5 | ||||
| Full Scale output(%FS) | -0.5 | ±0.25 | 0.5 | ||||
| Temp. characters | |||||||
| Operation Temp.(℃) | -40 | 125 | |||||
| Compensation Temp.(℃)1 | ≤40Kpa | 0 | 50 | ||||
| ＞40Kpa | -10 | 70 | |||||
| Total error band(%FS)2 | -0.75 | ±0.5 | 0.75 | ||||
| Long term Stability | |||||||
| Zero (±%FS annual) | 0.2 | ||||||
| Span (±%FS annual) | 0.1 | ||||||
| Power supply(V) | See ordering information | ||||||
| Insulation Resistance | 50MΩ/250V | ||||||
| Frequency(Hz) | 1K | ||||||
| Overpressure | ≤4Mpa | 2X | |||||
| ＞4Mpa | 1.5X | ||||||
| Pressure media | Liquids and Gases compatible with 316L Stainless Steel | ||||||
| Life | >107 Full range pressure | ||||||
1. Compensation temp. -20~85℃ optional
2. Total error band: total output error including Zero, Span,non-linearity,temp.erorr within compensated temperature range
CE Compliance:
* EN55022 Emissions Class A&B
* IEC61000-4-2(ESD):8KV(air)/6KV(contact)
* IEC61000-4-3 Radiated, Radio-Frequency Electromagnetic Field Immunity (3V/m, 80MHZ~1GHZ)
* IEC61000-4-4 Electrial Fast Transient Immunity (1KV)
* IEC61000-4-5 Surge Immunity
For Voltage Output: EX+ to GND:±0.5KV/42Ω; L to Case: ±1KV/12Ω; GND to Out+: ±0.5KV/42Ω
For Current Output: EX+ to EX-:±0.5KV/42Ω; L to Case: ±1KV/12Ω
This item is not applied for digital output
* IEC61000-4-6 Immunity to Conducted Disturbances Induced by Radio Frequency Fields (150KHZ~80MHZ 3V Level)
* IEC61000-4-9 Pulse Magnetic Field Immunity (100A/m Peak)
| Model | Input/Output | |||||
| ACE11 | 5V/0.5-4.5V(Ratiometric) | |||||
| ACE12 | 8-30V/0-5V | |||||
| ACE13 | 8-30V/4-20mA | |||||
| ACE1X | Special | |||||
| Code | Pressure Reference | |||||
| G | Vent Gauge Pressure | |||||
| S | Sealed Gage | |||||
| A | Absolute Pressure | |||||
| Code | Pressure Range | Gauge | Absolute | |||
| 10K | 0-10Kpa | * | ||||
| 40K | 0-40Kpa | * | ||||
| 100K | 0-100Kpa | * | * | |||
| 200K | 0-200Kpa | * | * | |||
| 600K | 0-600Kpa | * | * | |||
| 1M | 0-1Mpa | * | * | |||
| 1.6M | 0-1.6Mpa | * | * | |||
| 2.5M | 0-2.5Mpa | * | * | |||
| 4M | 0-4Mpa | * | * | |||
| 7M | 0-7Mpa | * | * | |||
| XX | Special | |||||
| Code | Electrical Connection | |||||
| 1 | Connect Pins | |||||
| 2 | Ribbon Cable(90mm as default) | |||||
| Example： | X | Special | ||||
| ACE13 | A | 600K | 1 | |||
| 4-20mA | Absolute | 0-600Kpa | Pins | Model：ACE13A-600K1 | ||
